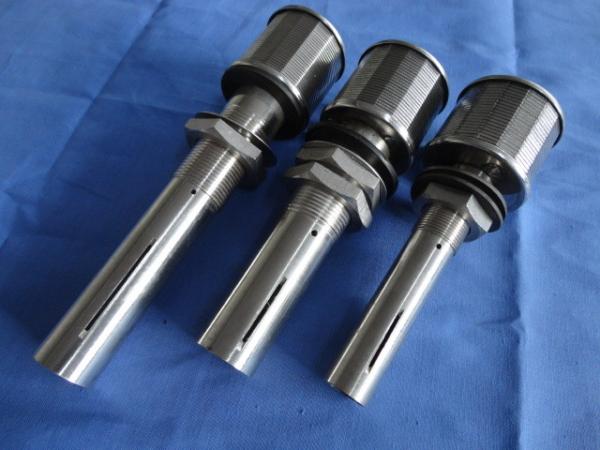

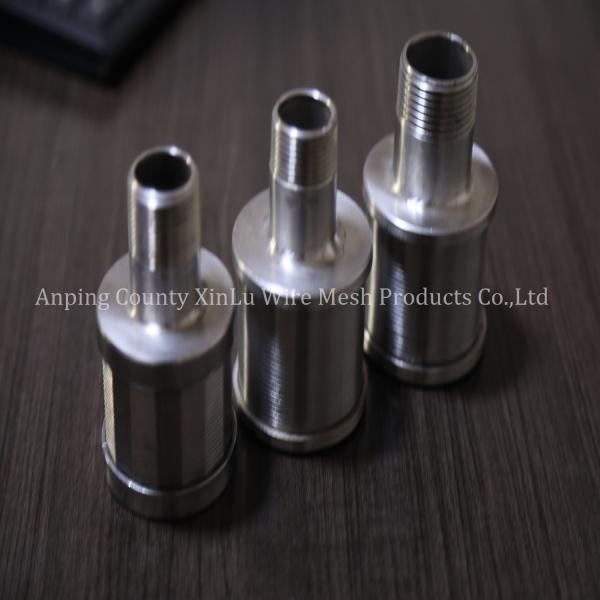

WEDGE WIRE RESIN TRAPS / JOHNSON SCREEN NOZZLE / WATER AND GAS STRAINER NOZZLE

Product Categories
Anping County Xinlu Wire Mesh Products Co.,Ltd
Contact Now

WEDGE WIRE RESIN TRAPS / JOHNSON SCREEN NOZZLE / WATER AND GAS STRAINER NOZZLE

Place of Origin : China

Brand Name : FY-XL

Model Number : FY-XL-14

Certification : CCIC, ISO

Price : 10$/spcs

Packaging Details : wooden box, pallet, container

Delivery Time : 3days

Payment Terms : T/T

Supply Ability : 320pcs/day

MOQ : 200pcs

Material : SS304, SS316L, SS321, Hastelloy C276, Titanium

Diameter : 38mm, 45mm, 50mm, 53mm, 57mm, 76mm, 82mm, 108mm

Slot : 0.15mm, 0.18mm, 0.2mm, 0.25mm, 0.3mm

Screen Hight : 25-60mm

Total Length : 120mm

Weight : 0.18-0.5kg/pcs

Filter Nozzle : Single head screen nozzle, Double flow filter nozzle, long neck filter nozzle

Threaded : M24, M32, G1", G3/4", NPT, BSP 1" 3/4"

Contact Now

Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd RESIN TRAPS

Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens resin traps feature a continuous slot design that prevents the loss of ion exchange resin, activated carbon media, filter media, greensand media, sand and other media. Not only is this essential to prevent the loss of expensive material, but it's also critical to avoid damaging downstream equipment.

However, this safety precaution will not diminish flow. Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens can manufacture resin traps to guard against your exact media particle size while also providing the flow rate your system requires.

Reliable, durable and extremely low maintenance, the non-clogging, continuous slot design allows for a large amount of open area with extremely consistent spacing. Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens can manufacture resin traps in a wide variety of materials and sizes to suit your application needs.

WEDGE WIRE RESIN TRAPS / JOHNSON SCREEN NOZZLE / WATER AND GAS STRAINER NOZZLE

Type 3: Specification of Long Hand Wedge Wire Filter Nozzle

Item

Model

Slot (mm)

Outline Dimension (mm)

Filtration Area (mm2), Slots 0.2 mm

D

H

L

M

L1
1 XLLN45-11-A 0.2-0.5 45 35 35 M20 according to order 330
2 XLLN45-11-B 0.2-0.5 45 45 40 M24 400
3 XLLN53-12-A 0.2-0.5 53 35 45 M24 510
4 XLLN53-12-A 0.2-0.5 53 45 50 M32 640
5 XLLN57-13-A 0.2-0.5 57 40 45 M32 630
6 XLLN57-13-B 0.2-0.5 57 50 50 M32 780

WEDGE WIRE RESIN TRAPS / JOHNSON SCREEN NOZZLE / WATER AND GAS STRAINER NOZZLE

Type 4: Specification Of Plate Type Flowing Wedge Wire Filter Nozzle

Item

Model

Slot (mm)

Outline Dimension (mm)

Filtration Area (mm2), slots 0.2 mm

D

L1

D1

L
1 CP82-DF1-A 0.25-0.5 82 50 50 130 1072-1300
2 CP82-SF1-A 0.25-0.5 82 50 50 130 551-690
3 CP82-SF1-B 1.02 82 50 50 130 1300
4 CP82-DF1-C 0.25-0.5 82 42 50 130 1020-1070
5 CP82-SF1-C 0.25-0.5 82 42 50 130 380-493
6 CP57-DF2-A 0.25-0.5 57 40 35 100 800
7 CP57-SF2-A 0.25-0.5 57 40 35 100 680
8 CP53-DF3-A 0.25-0.5 53 38 35 110 766
9 CP53-SF3-A 0.25-0.5 53 38 35 110 453-597
10 CP53-DF3-B 0.25-0.5 53 33 35 110 588
11 CP53-SF3-B 0.25-0.5 53 33 35 110 485
12 CP53-SF3-C 1.02 53 33 35 110 680-710
WEDGE WIRE RESIN TRAPS / JOHNSON SCREEN NOZZLE / WATER AND GAS STRAINER NOZZLEWEDGE WIRE RESIN TRAPS / JOHNSON SCREEN NOZZLE / WATER AND GAS STRAINER NOZZLEWEDGE WIRE RESIN TRAPS / JOHNSON SCREEN NOZZLE / WATER AND GAS STRAINER NOZZLEWEDGE WIRE RESIN TRAPS / JOHNSON SCREEN NOZZLE / WATER AND GAS STRAINER NOZZLEWEDGE WIRE RESIN TRAPS / JOHNSON SCREEN NOZZLE / WATER AND GAS STRAINER NOZZLEWEDGE WIRE RESIN TRAPS / JOHNSON SCREEN NOZZLE / WATER AND GAS STRAINER NOZZLEWEDGE WIRE RESIN TRAPS / JOHNSON SCREEN NOZZLE / WATER AND GAS STRAINER NOZZLEWEDGE WIRE RESIN TRAPS / JOHNSON SCREEN NOZZLE / WATER AND GAS STRAINER NOZZLEWEDGE WIRE RESIN TRAPS / JOHNSON SCREEN NOZZLE / WATER AND GAS STRAINER NOZZLE
