Nozzles are an ideal solution for applications with heavy amounts of media whose weight could compromise the integrity of unsupported screens. That's because nozzles are affixed to durable steel plates that can withstand great loads without damage. Using the nozzle method gives you the reliability you want with the flow rate you require.
Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens manufactures nozzles using a welded trapezoidal (wedge) wire screen variety of materials to ensure long life and reliable performance. The non-plugging, continuous slot design makes Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens nozzles ideal for applications that involve the retention of sand, activated carbon, ion exchange resin and more. They withhold the media while allowing the treated liquid to pass through.
If needed, Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens can also custom manufacture nozzles to your exact specifications, including material, fitting type and sizes.
Type 1: Specification of Single Head Wedge Wire Filter Nozzle |
| Item | Model | Slots (mm) | Outline Dimension (mm) | Filtration Area (mm2), slot 0.2 mm |
| D | H | L | M |
| 1 | XLSN45-1-A | 0.2-0.5 | 45 | 25 | 75 | M20 | 280 |
| 2 | XLSN45-1-B | 0.2-0.5 | 45 | 35 | 85 | M20 | 390 |
| 3 | XLSN45-1-C | 0.2-0.5 | 45 | 45 | 95 | M24 | 500 |
| 4 | XLSN53-2-A | 0.2-0.5 | 53 | 45 | 95 | M24 | 450 |
| 5 | XLSN53-2-B | 0.2-0.5 | 53 | 45 | 95 | M32 | 450 |
| 6 | XLSN53-2-C | 0.2-0.5 | 53 | 55 | 110 | M32 | 550 |
| 7 | XLSN57-3-A | 0.2-0.5 | 57 | 35 | 85 | M32 | 520 |
| 8 | XLSN57-3-B | 0.2-0.5 | 57 | 45 | 95 | M32 | 660 |
| 9 | XLSN57-3-C | 0.2-0.5 | 57 | 55 | 110 | M32 | 530 |
| 10 | XLSN70-4-A | 0.2-0.5 | 70 | 45 | 95 | M32 | 530 |
| 11 | XLSN70-4-R | 0.2-0.5 | 70 | 70 | 120 | M32 | 1000 |
| 12 | XLSN82-A | 0.2-0.5 | 82 | 60 | 120 | G11/M42 | / |
Type 2: Specification of Double Head Wedge Wire Filter Nozzle |
| Item | Model | Slot (mm) | Outline Dimension (mm) | Filtration Area (mm2), Slots 0.2 mm |
| D | H | L | M | |
| 1 | DT45-1-A | 0.25-0.5 | 45 | 30 | according to order | M25 | 330 |
| 2 | DT45-1-B | 0.25-0.5 | 45 | 35 | M25 | 300 |
| 3 | DT45-1-C | 0.25-0.5 | 45 | 40 | M25 | 450 |
| 4 | DT45-1-D | 0.25-0.5 | 45 | 45 | M25 | 400 |
| 5 | DT53-2-A | 0.25-0.5 | 53 | 30 | M25 | 400 |
| 6 | DT53-2-B | 0.25-0.5 | 53 | 35 | M25 | 380 |
| 7 | DT53-2-C | 0.25-0.5 | 53 | 45 | M32 | 680 |
| 8 | DT57-3-A | 0.25-0.5 | 57 | 35-40 | M32 | 530 |
| 9 | DT57-3-B | 0.25-0.5 | 57 | 50-55 | M32 | 700-750 |
Type 3: Specification of Long Hand Wedge Wire Filter Nozzle |
| Item | Model | Slot (mm) | Outline Dimension (mm) | Filtration Area (mm2), Slots 0.2 mm |
| D | H | L | M | L1 |
| 1 | XLLN45-11-A | 0.2-0.5 | 45 | 35 | 35 | M20 | according to order | 330 |
| 2 | XLLN45-11-B | 0.2-0.5 | 45 | 45 | 40 | M24 | 400 |
| 3 | XLLN53-12-A | 0.2-0.5 | 53 | 35 | 45 | M24 | 510 |
| 4 | XLLN53-12-A | 0.2-0.5 | 53 | 45 | 50 | M32 | 640 |
| 5 | XLLN57-13-A | 0.2-0.5 | 57 | 40 | 45 | M32 | 630 |
| 6 | XLLN57-13-B | 0.2-0.5 | 57 | 50 | 50 | M32 | 780 |
Type 4: Specification Of Plate Type Flowing Wedge Wire Filter Nozzle |
| Item | Model | Slot (mm) | Outline Dimension (mm) | Filtration Area (mm2), slots 0.2 mm |
| D | L1 | D1 | L |
| 1 | CP82-DF1-A | 0.25-0.5 | 82 | 50 | 50 | 130 | 1072-1300 |
| 2 | CP82-SF1-A | 0.25-0.5 | 82 | 50 | 50 | 130 | 551-690 |
| 3 | CP82-SF1-B | 1.02 | 82 | 50 | 50 | 130 | 1300 |
| 4 | CP82-DF1-C | 0.25-0.5 | 82 | 42 | 50 | 130 | 1020-1070 |
| 5 | CP82-SF1-C | 0.25-0.5 | 82 | 42 | 50 | 130 | 380-493 |
| 6 | CP57-DF2-A | 0.25-0.5 | 57 | 40 | 35 | 100 | 800 |
| 7 | CP57-SF2-A | 0.25-0.5 | 57 | 40 | 35 | 100 | 680 |
| 8 | CP53-DF3-A | 0.25-0.5 | 53 | 38 | 35 | 110 | 766 |
| 9 | CP53-SF3-A | 0.25-0.5 | 53 | 38 | 35 | 110 | 453-597 |
| 10 | CP53-DF3-B | 0.25-0.5 | 53 | 33 | 35 | 110 | 588 |
| 11 | CP53-SF3-B | 0.25-0.5 | 53 | 33 | 35 | 110 | 485 |
| 12 | CP53-SF3-C | 1.02 | 53 | 33 | 35 | 110 | 680-710 |

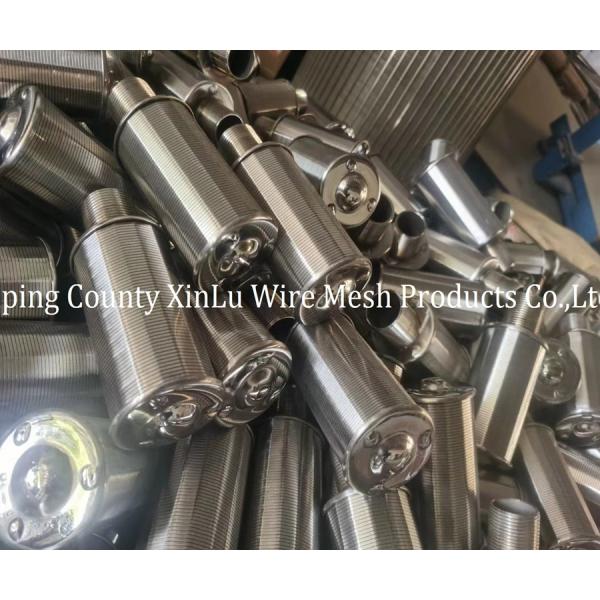

Johnson wedge wire water screen nozzle types:
1. Single head V wire tube flowing Screen Nozzle
2. Double head V wire tube flowing Screen nozzle
3. Long hand flowing pipe type Screen nozzle
4. Large long hand flowing pipe type Screen nozzle
5. Plate type flowing Screen nozzle
6. Double Flow Rate Screen nozzle
7. Pure round Johnson wire Screen Nozzle
Different types of wedge wire nozzles meet various application scenarios and installation requirements.
- Single head & double head type. Used for backwash water filtration, gravity & pressure filter tanks, ion exchange filter beds and other water distribution filtration systems.
- Long handle type. Used for the air-water backwash distribution system in filters.
- Flat plate flow rating type. Used for the treatment of drinking water, beverages, printing and dyeing, swimming pools, and other industrial water treatments. It can also be used in industrial wastewater and domestic sewage treatment projects.
